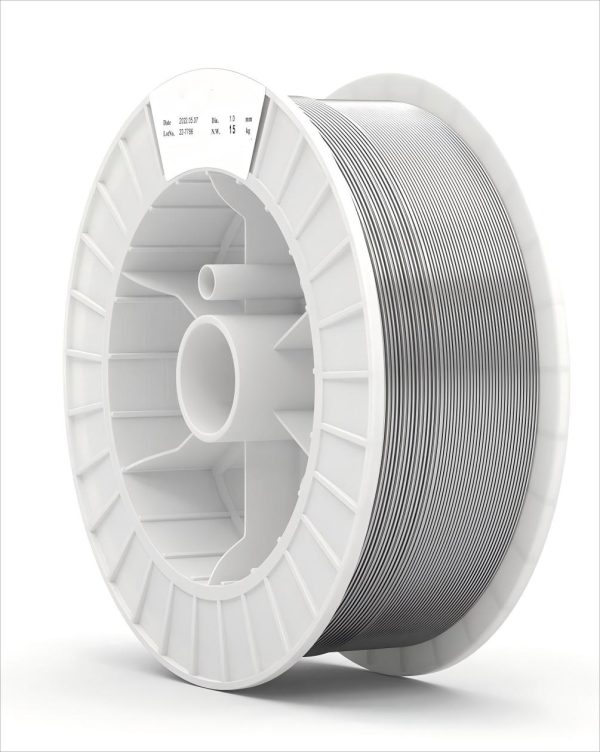

Chemical components of welding wire (%)
| C | Mn | Si | Cr | Ni | Mo | P | S | Cu | |
| Range | 0.08~0.15 | 1.00-2.50 | 0.30~0.65 | 25.0~28.0 | 20.0~22.5 | ≤0.75 | ≤0.030 | ≤0.030 | ≤0.75 |
| Test | 0.085 | 2.00 | 0.41 | 26.5 | 21.0 | 0.03 | 0.010 | 0.008 | 0.18 |
Mechanical properties of deposited metal:
| Tensile strength Rm (Mpa) | Elongation ratio (%) | Shielding gas | ||||||
| Test | 588 | 37 | 98%Ar+2%O₂ | |||||
Reference current (DC+)
| Diameter (mm) | φ0.8 | φ1.0 | φ1.2 | |||
| Welding Current (A) | 70~150 | 100~200 | 140~220 | |||
Precautions:
- Shielding gas: pay attention to the purity of shielding gas, it is recommended to keep the mixed ratio at Ar + 1~3% O₂.
- Gas flow: 20~25L/min.
- Dry extension length: 15~25min.
- The rust layer, moisture, oil stain, dust, etc on the welding part shall be clearly removed.
Welding Position: H, OH, HF, F, VD, VU
